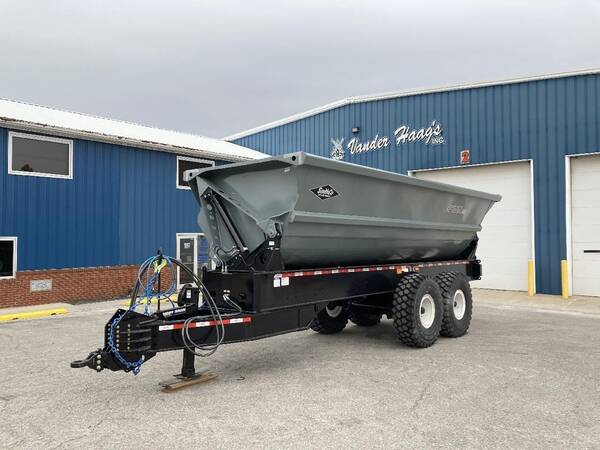

2026 SmithCo CPSHV20
$68,000.00 USD
CONTACT DEALER
DEALER INFO
Vander Haag's Inc.
495 E 150 S
WINAMAC, IN 46996
DETAILS
| Price | $68,000.00 USD |
| Year | 2026 |
| Make | SmithCo |
| Model | CPSHV20 |
| Stock # | SM-CPSHV20 |
| Axle | Tandem |
| brakepercentremaining | 100 |
| Capacitydryvolume (cubic yard) | 25.5 |
| Length (feet) | 33 |
| New | New |
| Tires | Surplus Mobile Crane Tires-CP20 - 16.00x20 |
| Tublength (feet) | 23 |
| Wheels | All Steel |
| Width (inches) | 102 |
Description
| (FET INCLUDED - PRICE IS FOB THE FACTORY) SmithCo Super High Volume Ag Pup: These units are available in a 20-ton capacity with a variety of construction grade or flotation type tires. A 2″ drawbar pin type hitch is standard, but scraper type hitches are also available. Whether you want to top load materials your scraper can’t handle, or you want to haul ag products to the field the Ag Series is the perfect choice. Call for Availability, Options and Pricing. Features: -Stockpile or Windrow -Watertight; no leaks -Designed for the agricultural market - -Animal waste - -Dirt & sand - -Demolition - -Seasonal grain wagon - -Silage - -Unlimited applications -AR450 Steel Tubs -80/100 KSI T-1 Steel Frames -25K Axles -Single Point Suspension -Construction grade or flotation type tires -Low Loading Height -Frame Length: 32' 10" Width: 8’ 6” -Tub Length: 23' - -Capacity: 25.5 cu yd Waterfull / 29 cu yd Heaped -Towing Eye: Rotating Bull Pull or Ag Hitch, 2" Drawbar Pin -Pushblock: Standard, 24" Extensions Available -Safety Chains: 1/2" Safety Chains w/ Safety Hooks -Loading Height: 10' 2" (122") -Tub Construction: 1/8" G80 Sides 3/16” AR450 Floor, Round Floor Style Tubs -Frame Construction: 80/100 KSI, Fabricated Steel I-Beam -Cylinders: 3500 PSI, 5" bore -Hinges: Self-Aligning, Spherical Bearing Type (greaseable) -Landing Gear: High Clearance -Suspension: Hutch H-900 60,000 lb Single Point -Axles: 25,000# Capacity -Hubs: 10 Hole, Hub Piloted -Drums: Outboard Mount, Cast Steel -Brakes Options: None, Hydraulic or Air Optional - Wheels: Tubeless, Steel Disc -Tires: 16:00 R 20 Tires (std); 600/55-22.5 Low Ground Pressure (optional) -Lights:12 Volt LED ICC w/ Sealed Harness -Paint: Polyurethane, any combination of gray, white or black (Special colors available upon request) -Min. Tractor Hydraulic Reqs.: - - 25-30 GPM - - 2,600-2,800 PSI - - 10 Gallon Reservoir -Net Payload Rating: 20 tons -Min. Tractor HP Reqs.: 200hp (Wet kit requirements: • 2-line kit • Flow rate: 25-30 gallons per minute • RPM: 1200 • Pressure: Minimum: 2500 psi / Preferred: 2850 psi) |
