2026 Dorsey LB35-22D

$64,900.00 USD

CONTACT DEALER

DEALER INFO

VANDER HAAG'S, INC.

4444 DELAWARE AVE
DES MOINES, IA 50313

MAKE OFFER

866-645-5164

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

$64,900.00 USD

Get Pre-Approved

Year

2026

Make

Dorsey

Model

LB35-22D

Stock #

35TONDORSEYDETACH

Axle

Tandem

Axle Type

Fixed

Basegroundclearance (inches)

boomwell

Yes

brakepercentremaining

100

Composition

Steel

Decklength (feet)

Floor Type

Apitong Floor

kingpinsetting

Yes

Length (feet)

motors

mudflaps

Yes

necktype

Hydraulic

New

numbertiedowns

outriggertype

Swing Out

ramp

Yes

Suspension

Air Ride

Swingclearance (inches)

tiedown

Yes

Tires

255/70R 22.5

toolbox

Yes

Type of Neck

Detachable

Wheels

All Steel

Width (inches)

102

Description

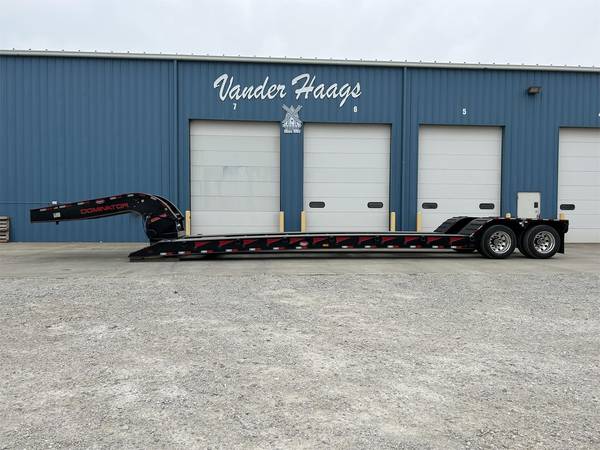

(Price Includes FET and is Priced FOB the Factory) 46'x102" Hydraulic Detachable Trailer, 35 Tons w/a 22" Loaded Deck Height, Weight: 15,300 lbs. Gooseneck: Hydraulic Detachable Non- Ground Bearing, 4 Position Ride Height Adjustment, Vertical Locking Pin, Hydraulic Support Arm, Auto Diverter Valve. 50" (4 Position) King Pin Height, 16" King Pin Setting, 84" Swing Clearance, 5/16 King Pin Plate. Main Deck: Level Deck Design, Main Longitudinal Members Fabricated With T-1 Steel Flanges 16" Main & 14" Side Beams, 10" I-Beam Crossmember On 24" Centers With 4" Stub Cross Members On 12" Centers Outer Bay, 1 1/2" Nominal Apitong on Outer Bays, Lockable Toolbox in Front of Deck, Removable Swing-Type Outriggers (Extends Trailer Width 2'), Knuckle Trough at Rear of Deck. Load Deck Height: 22" w/6" Ground Clearance, Deck Length, 25', Open Center Deck, Front Fixed Ramps, Deck Width: 8'6" Wide (of 102"), Swingouts: No Boards Supplied. Bogie: Fixed Deck with Triple Reinforced Connection to Front Bogie Ramp, V-Style Boom Trough, Recessed Load Bearing Bolsters Between Axles and Behind Last Axle, Heavy-Duty V-Style Rear Bumper, Ultra Low Bucket Well. Axles: 49" Spacing - (2) Heavy-Duty Axles, 25,000 Lbs. Nominal Capacity Per Axle (GAWR Determined by Suspension Type, Brakes, Tires and Other Components), Tapered Spindle Axles, Hub-Piloted 10- Long Stud Mount, Outboard Cast Drums Suspension: Unitized Heavy Duty 25,000 Lbs., Air-Ride Suspension with Automatic and Manual Controls, Suspension Override Prevention Straps on All Axles Brakes: 16 1/2" X 7", Heavy-Duty Brake Drums, Outboard Mount, Automatic Slack Adjusters, Type 30/30 Parking Brakes On (2) Axles, ABS Tires: 255/70R 22.5 H-Ply Tires Wheels: (8) Steel Disc Wheels 8.25 X 22.5 Wheel Wells: Covered W/ Steel Check Plate - ** NO Traction Bars ** Boom Trough: Open - "V" Crossmembers Electrical: Fully Sealed Wiring Harness With LED Lights, Marker Lights And Mid-Turn Signals, (3) Oval Stop, Tail and Turn Lights Per Side On Rear Strobe: Amber Strobes In Bumper & Battery Back-Up Protective Coating: Metal Prep (White Blasted and Cleaned Prior to Paining). Primer (PPG 2-Part Primer). Paint (2-Part PPG Black Acrylic Urethane) Load Securement: 16 Bent D' Rings
