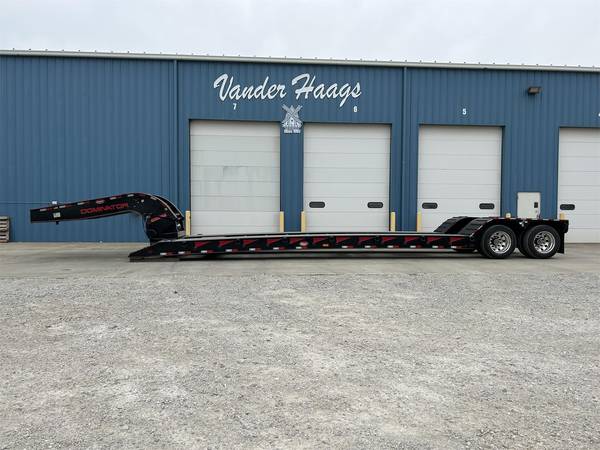

2026 Dorsey LB35-22D
$64,900.00 USD
CONTACT DEALER
DEALER INFO
Vander Haag's Dallas
4936 SHARP ST
DALLAS, TX 75247
DETAILS
| Price | $64,900.00 USD |
| Year | 2026 |
| Make | Dorsey |
| Model | LB35-22D |
| Stock # | 35TONDORSEYDETACH |
| Axle | Tandem |
| Axle Type | Fixed |
| Basegroundclearance (inches) | 6 |
| boomwell | Yes |
| brakepercentremaining | 100 |
| Composition | Steel |
| Decklength (feet) | 25 |
| Floor Type | Apitong Floor |
| kingpinsetting | Yes |
| Length (feet) | 46 |
| motors | No |
| mudflaps | Yes |
| necktype | Hydraulic |
| New | New |
| numbertiedowns | 16 |
| outriggertype | Swing Out |
| ramp | Yes |
| Suspension | Air Ride |
| Swingclearance (inches) | 84 |
| tiedown | Yes |
| Tires | 255/70R 22.5 |
| toolbox | Yes |
| Type of Neck | Detachable |
| Wheels | All Steel |
| Width (inches) | 102 |
Description
| (Price Includes FET and is Priced FOB the Factory) 46'x102" Hydraulic Detachable Trailer, 35 Tons w/a 22" Loaded Deck Height, 25' Well, Weight: 15,300 lbs. Gooseneck: Hydraulic Detachable Non- Ground Bearing, 4 Position Ride Height Adjustment, Vertical Locking Pin, Hydraulic Support Arm, Auto Diverter Valve. 50" (4 Position) King Pin Height, 16" King Pin Setting, 84" Swing Clearance, 5/16 King Pin Plate. Main Deck: Level Deck Design, Main Longitudinal Members Fabricated With T-1 Steel Flanges 16" Main & 14" Side Beams, 10" I-Beam Crossmember On 24" Centers With 4" Stub Cross Members On 12" Centers Outer Bay, 1 1/2" Nominal Apitong on Outer Bays, Lockable Toolbox in Front of Deck, Removable Swing-Type Outriggers (Extends Trailer Width 2'), Knuckle Trough at Rear of Deck. Load Deck Height: 22" w/6" Ground Clearance, Deck Length, 25', Open Center Deck, Front Fixed Ramps, Deck Width: 8'6" Wide (of 102"), Swingouts: No Boards Supplied. Bogie: Fixed Deck with Triple Reinforced Connection to Front Bogie Ramp, V-Style Boom Trough, Recessed Load Bearing Bolsters Between Axles and Behind Last Axle, Heavy-Duty V-Style Rear Bumper, Ultra Low Bucket Well. Axles: 49" Spacing - (2) Heavy-Duty Axles, 25,000 Lbs. Nominal Capacity Per Axle (GAWR Determined by Suspension Type, Brakes, Tires and Other Components), Tapered Spindle Axles, Hub-Piloted 10- Long Stud Mount, Outboard Cast Drums Suspension: Unitized Heavy Duty 25,000 Lbs., Air-Ride Suspension with Automatic and Manual Controls, Suspension Override Prevention Straps on All Axles Brakes: 16 1/2" X 7", Heavy-Duty Brake Drums, Outboard Mount, Automatic Slack Adjusters, Type 30/30 Parking Brakes On (2) Axles, ABS Tires: 255/70R 22.5 H-Ply Tires Wheels: (8) Steel Disc Wheels 8.25 X 22.5 Wheel Wells: Covered W/ Steel Check Plate - ** NO Traction Bars ** Boom Trough: Open - "V" Crossmembers Electrical: Fully Sealed Wiring Harness With LED Lights, Marker Lights And Mid-Turn Signals, (3) Oval Stop, Tail and Turn Lights Per Side On Rear Strobe: Amber Strobes In Bumper & Battery Back-Up Protective Coating: Metal Prep (White Blasted and Cleaned Prior to Paining). Primer (PPG 2-Part Primer). Paint (2-Part PPG Black Acrylic Urethane) Load Securement: 16 Bent D' Rings |
