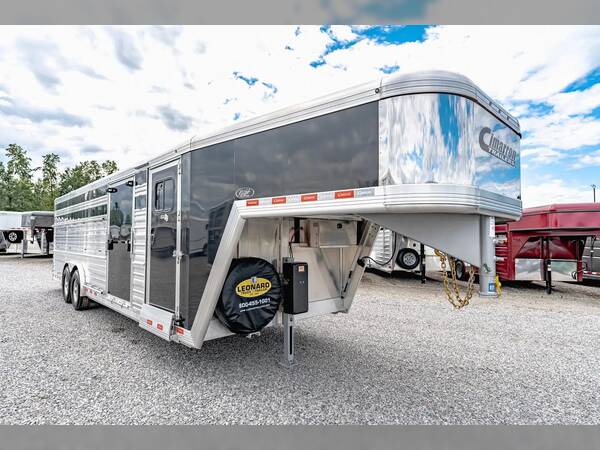

2025 CIMARRON

$71,630.00 USD

CONTACT DEALER

DEALER INFO

LEONARD TRAILER & TRUCK

12800 LEONARD PKWY
NORTH JACKSON, OH 44451

330-538-7345

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

$71,630.00 USD

Get Pre-Approved

Year

2025

Make

CIMARRON

Model

Stock #

43286

Length (feet)

New

Width (inches)

Description

Warranty: 8yr- Structural 3yr-Body and Hardware Overall Equipment Wall Construction: Extra Single Wall (Front Tack): 0 Dimensions: Box Length: 24' - 0" Box Width: 8' - 0" Box Height: 6' - 8" Gooseneck (GN) Length: 8' - 2" GN Drop Wall: 50" (For 4x4 Vehicle) GN Structure: Medium Duty Undercarriage: GVWR: 13,680 lbs Axles: 7,000 lb Dexter Torflex Axles (8 Bolt Hubs with 9/16" Studs) - Qty: 2 Axle Articulation: 10 Degree Up Brakes: Electric (All Wheel) Tires: Goodyear ST 235/80 R16" LR-E - Qty: 5 Wheels: 8-Hole Aluminum Spoke 16" LR-E - Qty: 5 Trim: Fender Edge Molding: NO Lower Body: Rocker Panel, Full Length Coupler: Type: 2-5/16" Positive Lock with Adjustable Height Stem (GN Standard) Design: Nose Profile: Tapered Sides with 18" Radius Corners Nose Sheet: Polished Stainless Steel Side Walls: Extruded Side Slat with 2 Air Gaps & Plexiglass Insert & Tray Sheet Color: Silver Metallic Exterior Extrusions: Mill Finished Fenders: Tear Drop Overall Width: 102" O.A.W. Roof Material: Insulated Roof Panel Flooring: Type: Extruded Aluminum with Cross Members @ 4" C/C Bottom Rail: HD-Bottom Rail Hardware: Hold Backs: All Doors & Gates Jacks & Parking: Type: Standard Single Speed with Drop Shoe Exterior Lights: Back-Up LED Lights: NO Tail Lights: LED with Red Lens (Qty: 4) Marker Lights: LED Button Type (Qty per side on top rail: 5) Flood Lights: LED Awning Light 8" (Qty: 1) Other Lights: LED Awning Light 16" (Qty: 1) Side Turn Signals: NO Walls: Front Tack Room: Solid Partition Wall, Full Height & Width Rear Tack Room: Straight Wall Front Tack Room Equipment Size: Length (LH): 4' - 0" Length (RH): 4' - 0" Width: 8' - 0" Doors: Primary Door: 32" Wide x Standard Height (RH) Flooring & Carpeting: Carpet/Floor Mat: Rubber Mat Floor, Carpet on GN Wall & Deck Living Quarters Prep: A/C Frame: 1 Windows: Sliding Type: 15" x 22" Stall Area / Load Space Equipment Size: Length (LH): 20' - 0" Length (RH): 20' - 0" Width: 8' - 0" Rear Opening: Type: Gate - Swing Type with Sliding Gate Latch Type: HD-Steel Cam Lock Gates: Access: 34" Sealed Access Gate with Black Latch (LH) GN Nose: 4" Tall Removable Tube @ GN Wall Center: Not specified Traveling: Frame with 48" Swinging Gate (No Threshold) Ramps: Side: Full Height up to 48" Wide, Sealed with Black Latches Pen Management System Width (LH): 5' - 0" Width (RH): 3' - 0" Lengths: Infinity Fold-Down Slat (Per Every 48"): Qty: 9 Hardware Dome Lights - Optibrite LED: Qty: 4 Utility Hooks (Set of 4): Qty: 2 Clothes Bars: Qty: 1 Pop-Up Vents (2 Rows): Qty: 6 Fold-Up Steps: Qty: 1 Special Requirements: Interior Tie Rail per Ft. - LH Side 28" & 48" Above Floor (Qty: 44) Tie Rail, Exterior, 1" Tube - RH Side Just Above Rocker Panel & Just Below Mid Gap (Qty: 26) Center Gates are 6" Above Floor Taper Ends of Fender Wells (Stock Trailer) (Qty: 1) Notch Rear Traveling Gate for Fenders Both Traveling Gates to Store at Partition Wall When Pens are in Place Pens are 50-50 and All Panels Hinged Off Center Post, 37.5" Tall
