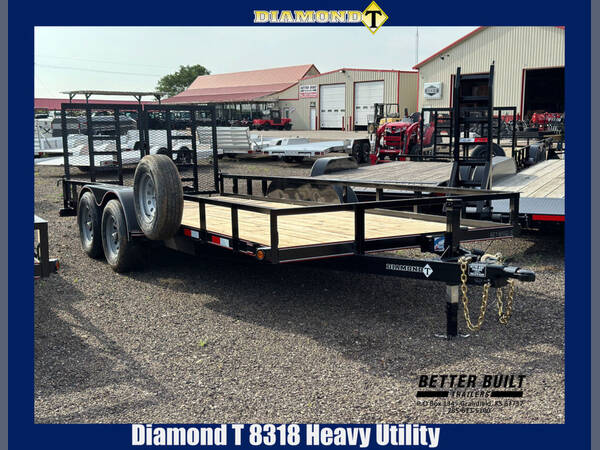

2024 Diamond T HU104 BP 8318HU104

2024 Diamond T Trailers 8318HU104

TECHNICAL SPECIFICATIONS
SELLING POINTS
Coupler: 25/16" Bulldog Style
Jacks: 7000# Dropleg
Safety Chains: 3/8"x39" w/Sliphook
Tongue: 5" Channel
Frame: 4"x3"x1/4" Angle
Toprail: 23/8" Round Tubing
Uprights: 2"x2"x3/16" Angle
Cross Members: 3"x2"x3/16" Angle
Axles: 1-5200# Idler, 1-5200# Brake w/ EZ Lube
Suspension: 5 Leaf Double Eye
Tires: 225/15 Load Range D Radial
Wheels: 15" 6 on 5 1/2" Silver Mod
Fenders: 9"x72" Teardrop w/ Radius Cut Back 2x8 Pressure Treated Pine
Flooring: All Sealed LED Stop, Tail, Turn and
Lights: Clearance Phosphate etched, primed, 2 coats
Finish: acrylic enamel
The Diamond T Heavy Duty Utility Trailer is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our HU104 an industry leader which include the following standard features:
Wrap Around Tongue
6 Tie Downs on Frame
Tubing Tail Board w/ Sealed LED's
Reflective Tape
Wiring Sealed in Frame
7k Setback Dropleg Jack
Rock Guard on Fenders
Breakaway Kit w/ LED Test Light
100% Prime and Paint
5' Long 2"x2"x1/4" Angle Ramps w/ Rear Rack
2 3/8" Pipe Toprail
Bulldog Style Coupler
