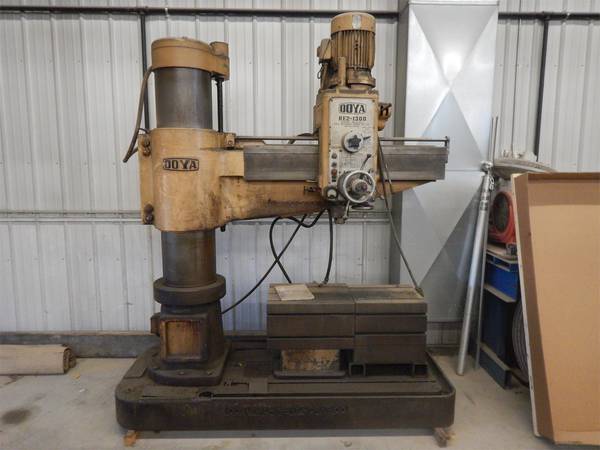

OOYA RE2-1300 4' X 13" RADIAL ARM DRILL

Click image to enlarge

CONTACT DEALER

Name

Zip Code

Phone #

Comment

Receive Fastline Emails

By clicking here, you authorize Fastline.com and its sellers/partners to contact you by texts/calls which may include marketing and be by autodialer. Calls may be pre-recorded. You also agree to our Privacy Statement. Consent is not required to purchase goods/services.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Send Message

DEALER INFO

1734 COUNTY ROAD 142 SE
DOVER, MN 55929

Dealer Profile

Driving Directions

Dealer Inventory

DETAILS

Price

Contact for Price

Year

Make

OOYA

Model

RE2-1300 4' X 13" RADIAL ARM DRILL

Stock #

01292402

Serial #

0A6-5612

New

Used

Description

Ooya 13 3/8” x 52 ½” Radial Drill, Model RE2-1300. Specifications: Drilling Capacity – Solid Steel 2 ¼” Drilling Capacity – Cast Iron 2 5/8” Boring Capacity – Steel 4” Boring Capacity – Cast Iron 7 1/8” Diameter of Spindle and Quill 2 3/8”, 3 1/16” Vertical Travel 11 13/16” Morse Taper No. 5 Speeds (12) 38-1,985 RPM Feeds (6) 0.0032 – 0.04 Column Diameter 13 3/8” Max. Distance, Column Surface to Spindle Center 52 ½” Min. Distance, Column Surface to Spindle Center 11 5/8” Horizontal Travel of Spindle Head 40 ¾” Max. Distance Base to Spindle 51 ¾” Min. Distance Base to Spindle 13” Vertical Travel of Arm 27 ½” Max. Height, Floor to Top of Column 85 3/8” Overall Size83” x 34” Main Drive Motor 7.5 HP Arm Elevation Motor 2 HP Clamping Motor ½ HP Coolant Pump 40 W Net Weight 7,270 lbs.
