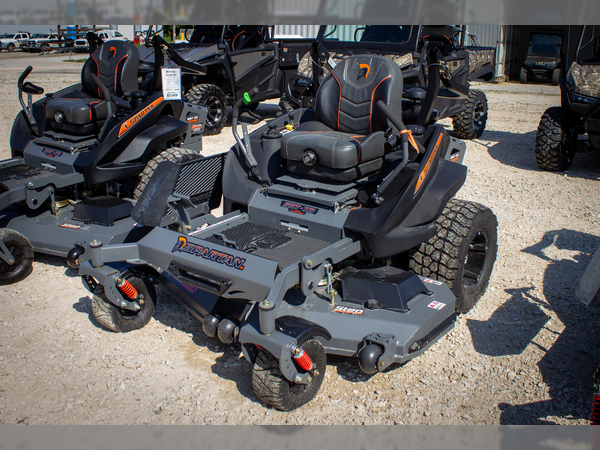

2023 Spartan SRT XD 61"
$13,569.00 USD
Width:
61"
Horse Power:
37HP
CONTACT DEALER
DEALER INFO
R BRAUN INC.
209 N 4TH AVE
SAINT NAZIANZ, WI 54232
DETAILS
| Price | $13,569.00 USD |
| Year | 2023 |
| Make | Spartan |
| Model | SRT XD 61" |
| Stock # | 24576148 |
| Serial # | SSXD161993VEXPB119820 |
| AUXILIARY POWER | 12v Outlet Next to Phone Holder |
| BLADE SPINDLES | Cast Aluminum, No Maintenance/Sealed Bearings |
| CONTROL PANEL LCD DISPLAY | Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes |
| CONTROL PANEL LED WARNING INDICATORS | Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI |
| CONTROL PANEL WARRANTY | 3 Year |
| CUT HEIGHT | Quick Adjust Dial from 1" to 5" with 15 Cut Heights |
| DECK ADJUSTMENT | Change-On-The-Go Precision Deck Height Dial |
| DECK DEPTH | 6" Deep, Reinforced 7 Gauge Full-Floating Deck |
| DECK LIFT | Foot Operated with Shock Assist |
| DECK SIZE | 61” |
| DECK WARRANTY | Lifetime on the leading edge |
| DRIVE TIRES | 24x12-R12 Radial |
| ENGINE | Vanguard Big Block EFI/ETC |
| ENGINE WARRANTY | 3 Year |
| FRAME | 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
| FRONT TIRES | 13x6.5-R6 Radial with Optional No Flats, or Tweels |
| FUEL CAPACITY | 9.5gal |
| FULL WARRANTY | 3 Year / 500 Hours Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty |
| HITCH | 2” Rear Receiver Standard |
| Horse Power | 37HP |
| HYDRAULIC DRIVE | Parker HTG Transaxles - 16cc Drive Motors |
| HYDRAULIC DRIVE TORQUE | Continuous - 498 ft-lb | Max Torque - 587 ft-lb |
| HYDRAULIC DRIVE WARRANTY | 3 Year / 1500 Hour |
| HYDRO DRIVE MAINTENANCE | 1000 Hours Between Oil Changes |
| IGNITION | Keyless, Personal Code activated |
| PARKING BRAKE | Foot Operated |
| SEAT | Smart Ride Technology w/ full suspension seat - adjustable TecsPak Elastomer supports - 360 degree floating seat platform - indepentant rear frame section suspended by Winamac coil springs |
| SPEED (F/R) | Forward - Up to 13mph | Reverse - Up to 5mph |
| STEERING LEVERS | Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
| STORAGE | Phone Holder, Cup Holder, and Deep Storage Tray |
| WHEELS TYPE | Aluminum rear wheels and front hub covers |
| Width | 61" |
Description
| Meet the SRT-XD, a favorite in our Spartan commercial zero turn mower lineup. The biggest Vanguard® engines, along with the two 66 lb Parker HTG-16cc extreme duty transmissions and the five layers of Smart Ride Technology comfort put the SRT-XD at the top of the food chain for commercial quality mowers. Front & Rear Radial Tires Rear Spring Suspension TecsPak® Underseat 360 Degree Seat Plate 3” Adjsutable Seat LED Light Kit Aluminum Wheels Big Block Engines 4 Bearing Spindles Adjustable Steering Arms 6” Deep Deck 13 mph Top Speed 18,500 FPM Blade Tip Speed Rear Stabilizing Wheels Parker HTG 16cc Transmissions |
