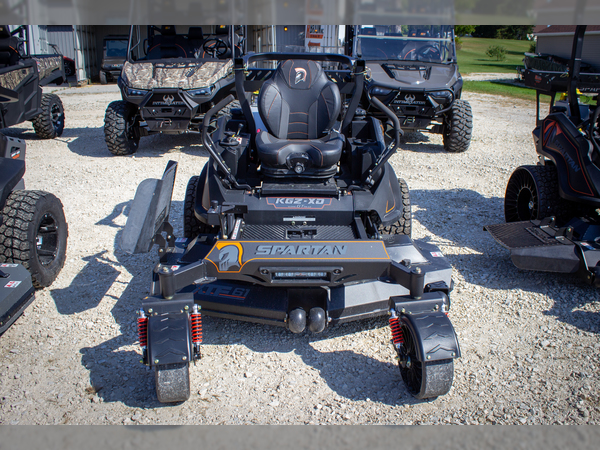

2023 Spartan KGZ XD Blackout 61"

$15,769.00 USD

CONTACT DEALER

DEALER INFO

R BRAUN INC.

209 N 4TH AVE
SAINT NAZIANZ, WI 54232

920-773-2143

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

$15,769.00 USD

Get Pre-Approved

Year

2023

Make

Spartan

Model

KGZ XD Blackout 61"

Stock #

24576154

Serial #

SKXD161994VO5PB120387

AUXILIARY POWER

12v Outlet

BLADE SPINDLES

Cast Aluminum, No Maintenance/Sealed Bearings

CONTROL PANEL LCD DISPLAY

Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes

CONTROL PANEL LED WARNING INDICATORS

Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI

CONTROL PANEL WARRANTY

3 Year

CUT HEIGHT

Quick Adjust Dial from 1" to 5" with 15 Cut Heights

DECK ADJUSTMENT

Precision Deck Height Pin System

DECK DEPTH

6" Deep, Reinforced 7 Gauge Full-Floating Deck

DECK LIFT

Foot Operated with Shock Assist

DECK SIZE

61"

DECK WARRANTY

Lifetime on the leading edge

DRIVE TIRES

24x14-R12 Michelin Tweels®

ENGINE

Vanguard Big Block EFI/ETC with Oil Guard

ENGINE WARRANTY

3 Year

FRAME

1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame

FRONT TIRES

13x6.5-R6 Michelin Tweels®

FUEL CAPACITY

16gal

FULL WARRANTY

3 Year / 500 Hour Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty

HITCH

2" Rear Receiver Standard

Horse Power

40HP

HYDRAULIC DRIVE

Parker HTG Transaxles - 16cc Drive Motors

HYDRAULIC DRIVE TORQUE

Continuous - 498 ft-lb | Max Torque - 587 ft-lb

HYDRAULIC DRIVE WARRANTY

3 Year / 1500 Hour

IGNITION

Keyless, Personal Code activated

PARKING BRAKE

Foot Operated

SEAT	Supreme Custom Blackout Seat - Adjustable TecsPak Elastomer supports - 360 degree floating seat platform

SPEED (F/R)

Forward - Up to 15mph | Reverse - Up to 6mph

STEERING LEVERS

Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down

STORAGE

Phone Holder, Cup Holder, and Deep Storage Tray

WHEELS TYPE

Michelin Tweels®

Width

61"

Description

The King of the Grass Ride-On KGZ-XD Blackout. Here are just a few advantages that take this zero turn mower into a class of its own:

2800 RPM engine speed for instant maximum torque.
Rugged fusion welded reinforced tube frame
16cc Parker HTG integrated hydros with no power-robbing reduction gears
4 Tweels for smooth, flat-free performance and increased traction
4 shocked front spring suspension with multi-adjustment
dual fuel tanks with 17 gallons of fuel capacity
55+ pounds of torque, EFI, electronic governors, and electronic variable spark advance
oversized electric clutch to handle torque load
special Blackout super seat, adjustable with TecsPak® adjustable suspension under the seat
Vanguard® engine with Oil Guard System
New magnetic mower height adjustment pin
