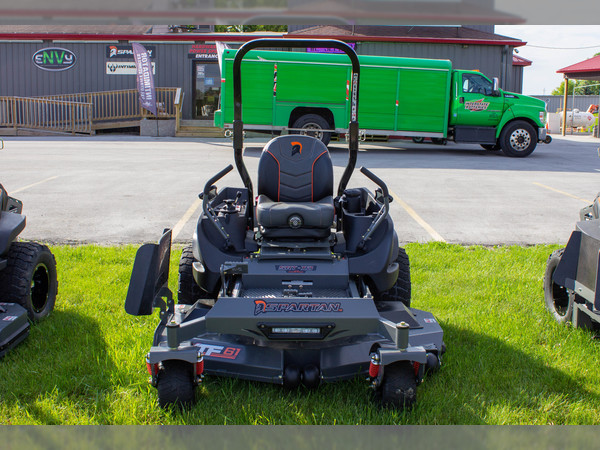

2022 Spartan SRT XD 61"

$12,219.00 USD

CONTACT DEALER

DEALER INFO

R BRAUN INC.

209 N 4TH AVE
SAINT NAZIANZ, WI 54232

920-773-2143

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

$12,219.00 USD

Get Pre-Approved

Year

2022

Make

Spartan

Model

SRT XD 61"

Stock #

24576144

Serial #

SSXD161999KE0NB093915

AUXILIARY POWER

12v Outlet Next to Phone Holder

BLADE SPINDLES

Cast Aluminum, No Maintenance/Sealed Bearings

CONTROL PANEL LCD DISPLAY

Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes

CONTROL PANEL LED WARNING INDICATORS

Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI

CONTROL PANEL WARRANTY

3 Year

CUT HEIGHT

Quick Adjust Dial from 1" to 5" with 15 Cut Heights

DECK ADJUSTMENT

Change-On-The-Go Precision Deck Height Dial

DECK DEPTH

6" Deep, Reinforced 7 Gauge Full-Floating Deck

DECK LIFT

Foot Operated with Shock Assist

DECK SIZE

61”

DECK WARRANTY

Lifetime on the leading edge

DRIVE TIRES

24x12-R12 Radial

ENGINE

Kawasaki FXT00V EFI/EGOV

ENGINE WARRANTY

3 Year

FRAME

1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame

FRONT TIRES

13x6.5-R6 Radial with Optional No Flats, or Tweels

FUEL CAPACITY

9.5gal

FULL WARRANTY

3 Year / 500 Hours Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty

HITCH

2” Rear Receiver Standard

HORSEPOWER

38.5HP

HYDRAULIC DRIVE

Parker HTG Transaxles - 16cc Drive Motors

HYDRAULIC DRIVE TORQUE

Continuous - 498 ft-lb | Max Torque - 587 ft-lb

HYDRAULIC DRIVE WARRANTY

3 Year / 1500 Hour

HYDRO DRIVE MAINTENANCE

1000 Hours Between Oil Changes

IGNITION

Keyless, Personal Code activated

PARKING BRAKE

Foot Operated

SEAT	Smart Ride Technology w/ full suspension seat - adjustable TecsPak Elastomer supports - 360 degree floating seat platform - indepentant rear frame section suspended by Winamac coil springs

SPEED (F/R)

Forward - Up to 13mph | Reverse - Up to 5mph

STEERING LEVERS

Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down

STORAGE

Phone Holder, Cup Holder, and Deep Storage Tray

WHEELS TYPE

Aluminum rear wheels and front hub covers

Description

Meet the SRT-XD, a favorite in our Spartan commercial zero turn mower lineup. The biggest Vanguard® engines, along with the two 66 lb Parker HTG-16cc extreme duty transmissions and the five layers of Smart Ride Technology comfort put the SRT-XD at the top of the food chain for commercial quality mowers. Front & Rear Radial Tires Rear Spring Suspension TecsPak® Underseat 360 Degree Seat Plate 3” Adjsutable Seat LED Light Kit Aluminum Wheels Big Block Engines 4 Bearing Spindles Adjustable Steering Arms 6” Deep Deck 13 mph Top Speed 18,500 FPM Blade Tip Speed Rear Stabilizing Wheels Parker HTG 16cc Transmissions
