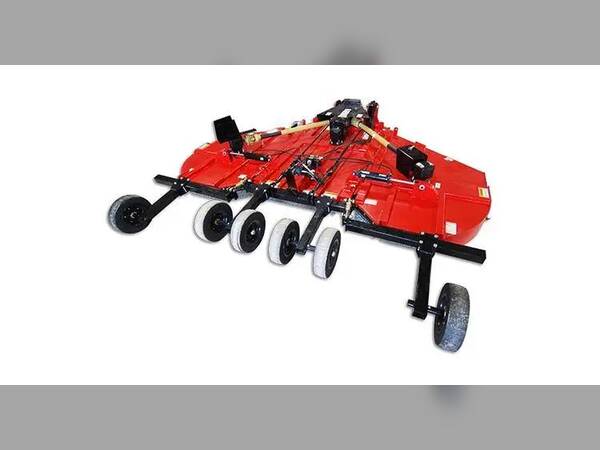

Ironcraft 1915 Flex-Wing Cutter
Click image to enlarge
CONTACT DEALER
DEALER INFO
County Equipment Co.
1901 WILLISBURG RD
LAWRENCEBURG, KY 40342
DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | Ironcraft |
| Model | 1915 Flex-Wing Cutter |
| Condition | Not Specified |
Description
| With its heavily braced decks and triple spring suspension, this Flex-Wing Rotary Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 4” diameter. Designed for use with tractors of 55 hp minimum, the cutter has a 180” cut width. The cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields and a safety tow chain are standard. |
Other
| Cut Width: 180 in. Cut Height: 2 in. - 15 in. Cutting Capacity: Up to 4 in. Recommended Minimum HP: 55 HP Outboard Gearbox Pwr Rating: 190 HP Splitter Gearbox Pwr Rating: 235 HP Gearbox RPM: 540 RPM - 1000 Optional Input PTO: ASAE Cat 8 Constant Velocity Wing Drive PTO: ASAE Cat 6 Gearbox Warranty: 5 Yr Limited Hitch: Swivel Pivot Deck Thickness: 7 Gauge or 3/16" Side Skirt Material: 1/4 in. X 12 in. Suspension: Triple Spring Blades: 1/2 in. X 4 in. Blade Tip Speed: 17,135 Fpm Blade Overlap: 6 1/2 in. Blade Carrier: 3/4 in. Round Disc Overall Width: 188 in. Overall Length W/Wheel: 189 in. Overall Weight: 5175 lb. Wheel Type: 5 LUG Standard Laminated - Used Aircraft Tires Optional Skid Shoes: Replaceable Front/Rear Chain Guards: Standard Tow Chains: Standard Wing Flex: 88 Degress Up - 22 Degress Down |
