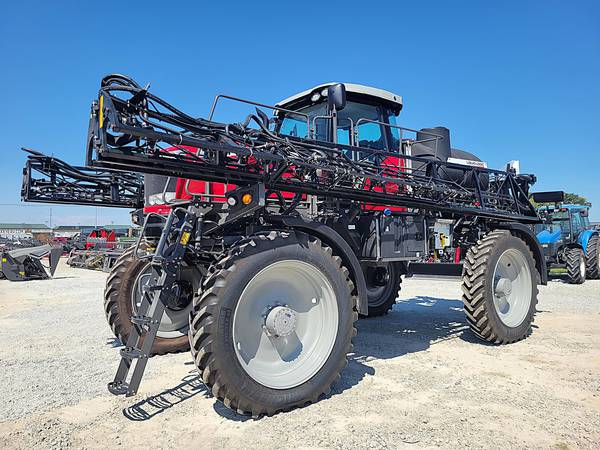

2025 Massey-Ferguson 530R

Name: Massey-Ferguson 530R
Brand: Massey-Ferguson
Availability: InStock

Boom Width:

100

CONTACT DEALER

DEALER INFO

MAYER FARM EQUIPMENT

1812 OH734
JEFFERSONVILLE, OH 43128

MAKE OFFER

800-996-2937

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

Contact for Price

Get Pre-Approved

Year

2025

Make	Massey-Ferguson

Model

530R

Serial #

UNKNOWN

Auto Guidance

Yes

Boom Width

100

Cab Air

Yes

camera

Yes

Capacity (gallons)

860

Drive Type

4WD

Front Fenders

Yes

Horse Power

235

instructionalseat

Yes

New

Nozzle Type

Five

Nozzlespacing (inches)

premiumcab

Yes

premiumlighting

Yes

Suspension

Air Ride

Tank Type

Poly

Wheel Type

Tires

Description

NEW Massey Ferguson 530R Sprayer, Brand NEW Model, 100' Booms, 860 Gallon Tank, Trimble Guidance, AWD, Air Ride Suspension. LOADED. IN STOCK!!! ENGINE • AGCO Power 7.4L (451 cu. in.) • 211 SAE HP (158 kW) @ 2100 RPM, Power Bulge • 235 HP (175 kW) @1900 RPM • Peak Torque 686 lb ft. (930 NM) @ 1500 RPM • Certified Tier V / Stage VI Off-Road • DPF Incorporated Filter into Exhaust HYDROSTAT • Hydrostatic Single Danfoss • 7.9 cu. in. (130 CC) per revolution • All Wheel SmartDrive System with Traction Control, Turn Compensation & ABS Braking FI NAL DRIVE HY DRAU LIC MO TOR • Make: Danfoss • Displacement 60 cc • Independent Speed Sensors GEAR BOX • Make: Bonfiglioli • Gear Reduction: 26.3:1 SPEED • Field Range: 0-25 mph (40 kph) • Road Range: 0-30 mph (48 kph) BRAKES • Primary: Hydrostatic Dynamic Braking EMER GENCY AND PARK ING BRAKES • Multiple Wet Disc (Spring Applied, Hydraulic Pressure Release) Located on each Final Drive • Ladder Controlled by Parke Brake Switch FRAME • Flexible Modified Carbon Steel • 3”X9” C Section • Ladder Style Bolted Cross Members AD JUST ABLE AXLE • Hydraulic Adjustable • Adjustable 110” – 133” • Puck-Style Slide Tube Tension Adjusters SUSPEN SION • Air Spring • Haladex Leveling Valves (All Springs) STEERING • Cylinders Double Acting • Turning Radius (2 Wheel Steer) 16’ (4.8 m) TECH NOL OGY • MF Connect (Telemetry) • Massey Terminal Display • 10.4” Touchscreen • Night Mode Setting • Camera Ready ELECTRICAL SYSTEM • Alternator Dual 200 AMP • Batteries (Qty. 2) 12VDC 1000CCA • Automatic Battery Disconnect • Backup Alarm • Electric Horn LIGHT PACK AGE • Low Beams Hood • High Beams Hood • Cab Lights • Settable Exit Lights AIR SYS TEM • Compressor Engine Mounted 150cc/rev • 10.4 Gallon (40L) • Electronically Controlled Dryer STOR AGE CAB I NET • Locking Polyethylene Storage Cabinet Left side of Machine FLUID CA PAC I TIES • Fuel 96 Gallons (365 L) • DEF Reservoir 15 Gallon (56 L) • Hydraulic Reservoir 52.8 Gallons (200 L) • Engine Oil 6.5 Gallon (24.7 L) • Engine Coolant 5.8 Gallon (22 L) • Hand Wash Tank 5 Gallon (1.3 L) • Wheel Gearbox 0.3 Gallon (1.2 L) per Gearbox TIRES • VF380/90R46 Firestone • Four Mounted Fenders • Wheel Motor Cover CAB • Front Window Pull Down Sunscreen • Front Window Wiper with Rinse • Pneumatic Cloth Seat Lumbar Support Seat Back Adjustable Position Fore/Aft Adjustment • Instructor Seat with Seatbelt • Molded Floor Mat • Floating Armrest with Fingertip Controls • Fore/Aft & Up/Down Armrest Adjustment • Elbow Pad Armrest Storage • Cup Holders • HVAC Climate Control • Active Carbon Filtration • Self-Canceling Turn Signals • Massey Terminal Mounted on Armrest (Adjustable) • Standard Electric Adjustable and Heated Mirrors • (2) USB Charging Ports
