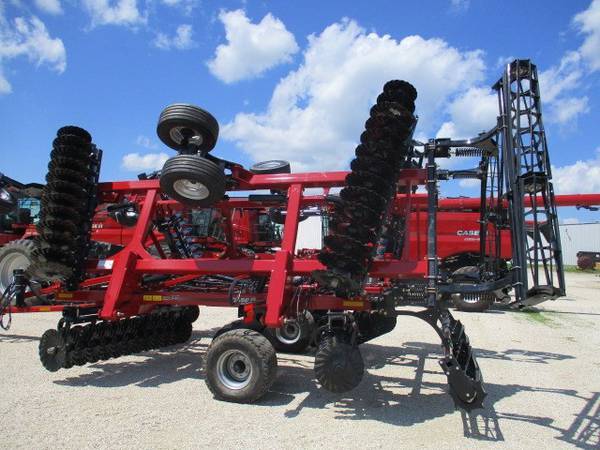

2024 Case IH VT-FLEX 435 30FT

$161,500.00 USD

CONTACT DEALER

DEALER INFO

Windridge Implements, LLC - Cresco, IA

809 2ND AVE SW
CRESCO, IA 52136

563-547-3688

Dealer Profile

Driving Directions

Dealer Inventory

SEND MESSAGE

DETAILS

Price

$161,500.00 USD

Get Pre-Approved

Year

2024

Make

Case IH

Model

VT-FLEX 435 30FT

Stock #

ELS4891614

Serial #

JFHVT435KR010192

New

Description

Stock # 23320W, Hydraulic leveling / Fore-aft self-leveling adjust ,Pivoting Stabilizer Wheels / Pivoting uni-directional 7.6 x 15 6PR / Two for 18.5 to 38.5 ft. sin Condition: Excellent on-site 30.00 FEET
: Standard Equipment
HITCH:
Adaptable Class II double clevis or Class III
pintle hitch for tractors with or without a
hammer strap drawbar
Spring cushioned hitch

FRAME:
Heavy welded tubing and cross-bracing –
Tube-Thru-Tube design for maximum strength
and durability
Fore/aft tubing – 6 in. x 6 in.- .375 in. wall
Cross tubing – 6 in. x 4 in. - .375 in. wall

UNITIZED GANGS (pre-assembled):
4 x 6 in. rectangular tube gang bars
w/bolted-on bearing standards
Cushion Gang Bearing - Precision type
greasable, triple sealed trunnion
regreasable, triple sealed trunnion
nodular iron housing.
0° - 12° mechanically adjustable angle front
and rear
1-1/2 in. round spring steel arbor bolts
Nodular iron spacing spools with machined
ends VT wave blades
Diameter: 20 in.
Thickness: .256 in.
Blade Spacing: 7.5 in.

SPOOL SCRAPERS:
Heavy-duty formed scrapers and trunnion
bearing
Angled shields to prevent plugging at
C-Spring

REAR CONDITIONER:
14 inch diameter double-edge formed
rolling TigerPaw crumbler with spring
down pressure

WHEELS AND TIRES:
Main Frame:
Walking tandem axles with 8-bolt
heavy-duty hubs with replaceable
spindles,
11ft-25ft, 340/55-16 tires
30ft and 34ft, 380/55-16.5 tires
Wing Frames (20, 23, & 25 ft,):
Walking tandem 6-bolt heavy-duty
hubs with replaceable spindles,
11ft-25ft,11L x 15 8PR tires on wings
30ft and 34ft, 280/75-75R1
HYDRAULICS & TRANSPORT SYSTEM:
Single point depth adjustment hydraulic
depth control
Hydraulic lift system:
4 x 12, 3-3/4 x 12 in. hydraulic cylinders
Wing Fold system:
4 x 24, 4 x 20 in. hydraulic cylinders
3000 PSI hydraulic cylinders, hoses,
fittings
Male ISO ½" couplers on hydraulic hoses
to tractor

DIMENSIONS:
WORKING TRANS WID TRANS HGT
----- ------ -----
11 ft. 13 ft. 7 in. 7 ft.
15 ft. 13 ft. 7 in. 9 ft. 10 in.
20 ft.
