2008 Great Plains 3-Point Min-Till 2000

2021 Great Plains 3-Point Min-Till 2000

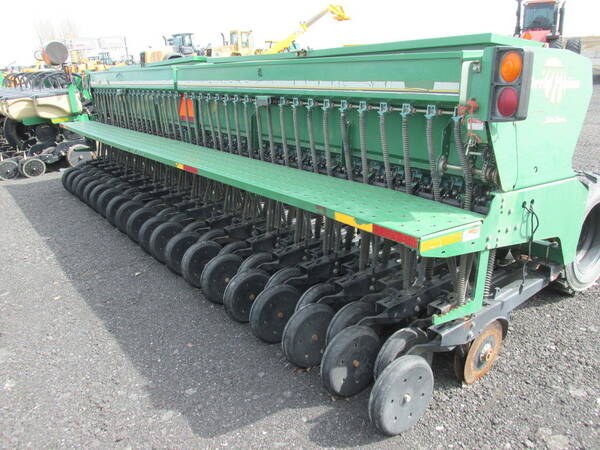

Great Plains offers a complete line of 3-Point Drills with multiple options to satisfy specific farming practices and different equipment needs. These drills are available in working widths from 12' to 37', with a choice of openers and either fluted or precision meters.

The 00 Series opener is ideal for most conditions. It features a full-length seed tube and T-handle depth control adjuster. If more vertical travel is needed, the 10 Series opener offers a parallel linkage system that keeps the opener level throughout its full ten inches of travel. Multiple press wheel combinations are available for either series. The 20 Series openers specialize in narrow row planting in stale seedbeds. Side-depth wheels keep sticky, tight soils from blowing out. These openers also feature T-handles for easy depth adjustments, full-length seed tubes, and a choice of V-shaped closing wheel assemblies.

A choice of meters further customizes these drills to the specific needs of the end user. Fluted feed meters and a 4-speed transmission effectively meter nearly any seed in both fast and slow drilling conditions. Precision drills utilize a Singulator Plus™ meter to successfully singulate many seed types, including soybeans, sorghum, and cotton – and even ultra low-rate rice.

Select models can be turned from min-till to no-till by adding a Great Plains Center Pivot Hitch (CPH) or Precision Fertilizer Hitch (PFH).

Features may include:

• All openers are staggered 7" for maximum residue flow. You can easily access the openers from the rear of the machine. Hence, no more climbing under the drill to make routine depth adjustments.

• Smaller version of the fluted feed cup precisely meters small seeds.

• Ensures speed sensitive seed metering. Frame height is also controlled with these large rib implement tires.

• Provide gentle and even delivery of a wide variety of seed sizes and shapes.

• Easy cleanout and six-point meter wheels accurately meter fertilizer.

• Dividers help distribute all the seed to the seed cups.

• The exclusive T-handle depth control adjustment features 18 positions in 1/8" increments to set proper seed depth for almost any seed.

• Choices include 3"x13" double rib* press wheels, 3"x13" center rib press wheels that create a crease over the seed to aid in even seed emergence, or 2"x13" smooth press wheels that firm the soil directly over the seed.

• Category 2, 3, and 3N hitch on a heavy-duty trussed mainframe provides unmatched strength and durability.

• Choose between single or dual gauge wheels. Single gauge wheels can be ordered with either implement tires or heavy-duty skid steer tires.

• With the bedded irrigation setup, openers are raised or lowered to match peaks and valleys of raised beds to maximize seeding accuracy.

• Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

• Fully welded, 4-bar ladder-style frames give these 3-point drills added strength and durability.
