DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE75U |
| Stock # | 4420020007945 |
| Id | 8535135 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/4/2026 4:33:59 PM -05:00 |
Description

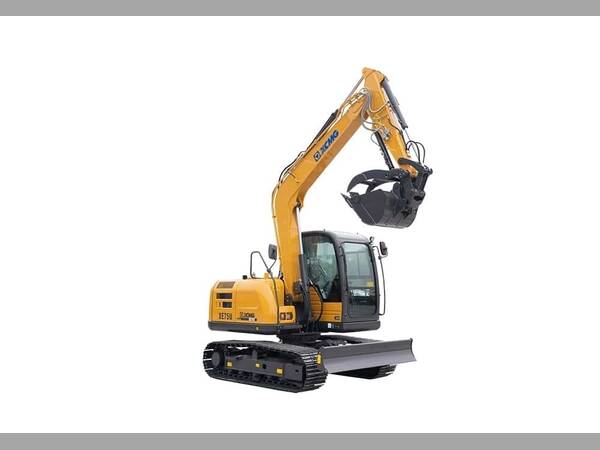

| 🚧 XCMG XE75U Compact Excavator — KUBOTA Tier 4 Power + Load-Sensing Hydraulics (7.5 Ton Class) 🚧 If you want a compact excavator that feels like a true production machine (not a light-duty mini), the XCMG XE75U delivers. You get trusted KUBOTA Tier 4 diesel power, strong load-sensing hydraulics for smooth multi-functioning, serious digging force, and a stable undercarriage ready for daily trenching, utilities, site prep, landscaping, drainage, and attachment work. ✅ TOP SPECS (QUICK HITTERS) • Rated Power: 60.3 hp • Operating Weight: 17,328 lb • Standard Bucket Capacity: 0.43 yd³ ✅ ENGINE — KUBOTA POWER (Tier 4) • Make/Model: Kubota V2607-CR-TIE4B • Cylinders: 4 • Rated Power: 60.3 hp @ 2200 rpm • Max Torque: 166.6 lbf·ft @ 1500 rpm • Idle: 1200–2000 rpm • Displacement: 159.6 in³ • Bore x Stroke: 3.7" x 4.7" • Starter: 12V / 4.0 hp • Air Filter: double element with automatic dust evacuation ✅ HYDRAULICS — LOAD-SENSING / SMOOTH MULTI-FUNCTION (Designed for independent + combined operation of all functions using hydraulic pilot-controlled levers) • Main Pump: load sensing, variable displacement • Pump Displacement: 4.76 in³/rev • Max Flow @ 2100 rpm: 41.2 gpm • Relief Valve Pressure: 4,090 psi Maximum system pressure (at power boost): • Travel: 4,090.0 psi • Swing: 2,987.8 psi • Pilot: 507.6 psi Hydraulic cylinders (qty / bore x rod x stroke): • Boom: 1 — 4.3 x 2.9 x 36.3 in • Arm: 1 — 3.7 x 2.4 x 34.8 in • Bucket: 1 — 3.4 x 2.2 x 29.2 in • Dozer: 1 — 4.7 x 3.2 x 6.2 in • Boom swing: 1 — 4.3 x 2.6 x 23.3 in ✅ DIGGING / PERFORMANCE (ISO 6015) • Digging Force (standard arm): 8,543 lbf • Digging Force (bucket): 12,814 lbf Travel & traction: • Travel Speed (low–high): 1.67–3.04 mph • Maximum Traction Force: 14,388 lbf • Gradeability: ≤30° ✅ SWING SYSTEM (BUILT LIKE A BIG MACHINE) High-torque axial piston motor with planetary reduction gear (oil bath). Single-row shear-type ball bearing swing circle with induction-hardened internal gear. Internal gear and pinion gear immersed in lubricant. Automatic multi-disc slew brake. • Max Swing Speed: 11 rpm • Max Swing Torque: 2,633 ft·lb • Boom Swing Angle (L/R): 62° / 50° ✅ UNDERCARRIAGE — HEAVY DUTY X-TYPE • X-type undercarriage with fully welded, stress-free structure • Hydraulic chain adjusters with shock-absorbing return springs • Lifetime-lubricated track rollers and idlers • Each track driven by independent high-torque axial piston motor through planetary reduction gears • Smooth travel + counter-rotation via dual control levers Rollers / track details (per side): • Upper rollers: 1 • Lower rollers: 5 • Number of links & shoes: 39 • Overall track length: 9'5" ✅ WEIGHTS / TRACK OPTIONS / GROUND PRESSURE (Listed with 1.82 m / 5'12" arm + 0.35 m³ / 0.46 yd³ bucket + extra counterweight 250 kg / 551 lb) • Rubber tracks: 16,490 lb | 5.02 psi | shoe width 1'6" • Steel tracks: 16,932 lb | 5.10 psi | shoe width 1'6" ✅ FLUID CAPACITIES • Fuel Tank: 34.3 gal • Cooling System (radiator): 3.7 gal • Hydraulic Oil Tank: 37.0 gal • Engine Oil: 2.6 gal • Swing Drive: 0.13 gal • Travel Device: 2 × 0.34 gal ✅ NOISE EMISSIONS • Noise level LwA (guaranteed): 98 dB(A) • Noise level LwA (measured): 98 dB(A) • Operator LpA: 78 dB(A) ✅ WORKING RANGE • Max Digging Height: 23'3" • Max Dumping Height: 16'11" • Max Digging Depth: 13'2" • Max Vertical Wall Digging Depth: 9'7" • Max Digging Radius: 20'6" • Minimum Swing Radius: 6' ✅ DIMENSIONS • Overall Length: 20'2" • Overall Width: 7'5" • Overall Height: 8'10" • Width of Platform: 6'9" • Track Length: 9'5" • Total Width of Chassis: 7'5" • Track Shoe Width: 1'6" • Crawler Base: 7'5" • Track Gauge: 5'11" • Counterweight Clearance: 2'8" • Minimum Ground Clearance: 1'2" • Minimum Tail Swing Radius: 5'11" • Track Height: 2'3" ✅ LIFTING CAPACITY (ISO 10567) Brochure includes full lifting chart for Cab • standard arm (1350 mm) • standard counterweight • without bucket. Notes: limits by hydraulic capacity vs tipping load; stability assumptions; proper |
