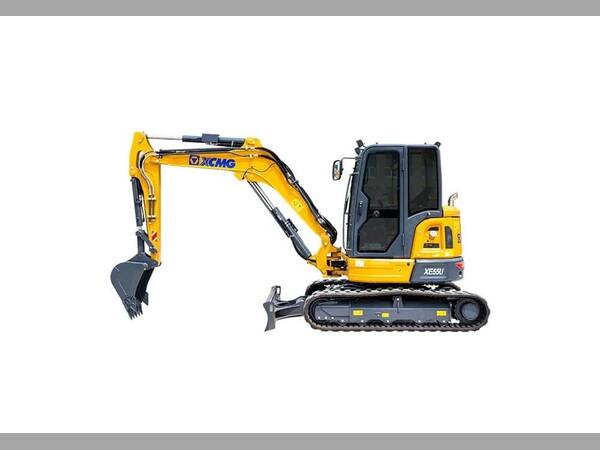

Click image to enlarge
DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE55U |
| Stock # | 4420020007944 |
| Id | 8535133 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/4/2026 4:18:14 PM -05:00 |
Description
| 🔥 XCMG XE55U Mini Excavator — KUBOTA Tier 4 Final Power + Serious Hydraulic Performance 🔥 If you want a compact excavator that customers instantly trust, start with what matters most: it’s powered by a KUBOTA V2403 Tier 4 Final diesel. The XE55U brings reliable Kubota power, smooth pilot controls, strong digging forces, and real auxiliary flow for attachments—built for utilities, site work, drainage, landscaping, light demo, and tight-access jobs. ✅ ENGINE (KUBOTA — Tier 4 Final) Make/Model: Kubota V2403 (Tier 4F) Rated power: 41.2 hp (ISO 14396) Max torque: 117.9 ft-lb @ 1500 rpm Cylinders: 4 Bore x Stroke: 3.4 in x 4 in Cooling: liquid, forced circulation Alternator: 12V / 60A Noise: 79 dB(A) LpA (ISO 6396) / 96 dB(A) LwA (ISO 6395) 💪 OPERATING WEIGHT / BUCKET Operating weight (Cab): 12,566 lb Operating weight (Canopy): 12,346 lb Standard bucket capacity: 0.21 yd³ (brochure “0.21 yd/three.superior”) General purpose bucket (listed): 0.2 yd³ Ground pressure: 4.6 psi Transport mass With Cab: 12,403.2 lb With Canopy: 12,182.7 lb Track/arm add-on weights Steel tracks weight: 683.4 lb Rubber tracks weight: 529.1 lb Additional weight for long arm: 59.5 lb 🚀 HYDRAULICS (ATTACHMENT READY) Pump type: Load-sensing axial-piston pump (variable displacement) Total hydraulic capacity: 41.8 GPM AUX1 & AUX2 max flow: 23.8 GPM AUX1/AUX2 standard relief pressure: 2,465.6 psi Maximum system pressures Arm / Bucket / Travel: 4,641.2 psi Boom: 4,641.2 / 4,641.2 / 4,119.1 psi Swing: 3,335.9 psi Control note from brochure: pilot-controlled levers allow independent + combined function operation (smooth multi-function work). ⛏️ PERFORMANCE Digging forces (ISO 6015) Standard arm: 5,462.9 lbf Long arm: 5,260.5 lbf Bucket: 10,004 lbf Travel / traction Travel speed (low–high): 1.7 – 2.9 mph Traction force: 11,869.9 lbf Gradeability: 70% / 35° Swing High-torque axial piston motor + planetary reduction, oil bath Slew brake: automatic multi-disc Swing circle: single-row shear-type ball bearing w/ induction-hardened internal gear Slew rate: 9.5 rpm 🛞 UNDERCARRIAGE / TRACKS X-type undercarriage (fully welded, stress-free structure) Hydraulic chain adjusters + shock-absorbing return springs Lifetime-lubricated track rollers and idlers Bottom rollers (per side): 5 Tracks: Rubber (steel listed as option) Track shoe width: 16 in Overall track length: 8'2" 📏 WORKING RANGE (STANDARD ARM vs LONG ARM) Max digging height: 18'6" (std) / 18'11" (long) Max digging depth: 11'11" (std) / 12'9" (long) Max dumping height: 13'2" (std) / 14'2" (long) Max vertical wall depth: 8'10" (std) / 9'6" (long) Min swing radius: 7'12" (std) / 8'2" (long) Max reach at ground level: 19'7" (std) / 25'5" (long) (as printed in brochure) Max digging reach: 20'1" (std) / 20'9" (long) Dozer lift / cut: 18" lift / 16" cut 📐 DIMENSIONS (BROCHURE HIGHLIGHTS) Overall length: 17'6" Tail swing radius: 3'5" Tumbler length: 6'6" Track length: 14'9" Undercarriage length: 10'5" Dozer blade max reach at ground: 6'7" Dozer blade height: 16" Overall width: 6' Track gauge: 5'1" Min ground clearance: 12" Track height: 22" Counterweight clearance: 25" Overall height (engine hood): 5'7" Overall height: 8'5" Track shoe width: 16" Working width at max rotation: 6'12" (RH) / 6'5" (LH) (as printed) Max boom offset: 32" right / 24" left Boom swing: 70° right / 53° left 🧰 FLUID CAPACITIES Cooling system (radiator capacity): 3.2 gal Engine oil + filter: 2.5 gal Fuel tank: 18 gal Hydraulic tank: 12.2 gal Hydraulic system: 5.8 gal Final drive case (each): 0.3 gal 🏋️ LIFTING CAPACITIES (BROCHURE CHART) The brochure includes full ISO lift charts for: Cab + standard arm (5'2") and Cab + long arm (6'3"), standard counterweight, no bucket. Peak chart values shown reach up to ~8,069 lb depending on radius/height/configuration. (I can format the full chart into a clean “spec sheet image” if you want it posted as a second slide |
