DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE210U |
| Stock # | 4420020007950 |
| Id | 8535143 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/17/2026 12:13:48 PM -05:00 |
Description

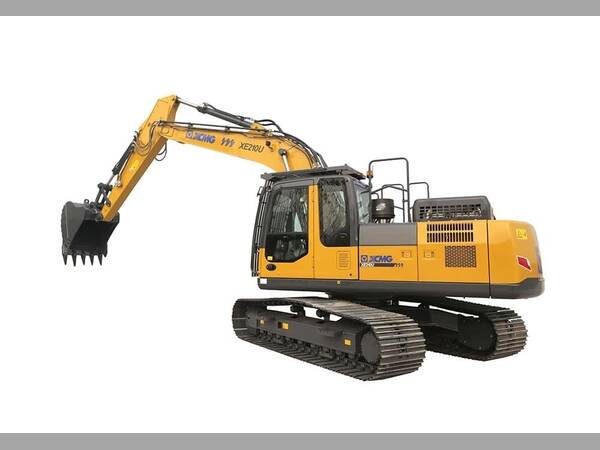

| 🚧 XCMG XE210U Hydraulic Excavator — Cummins Powered 21-Ton Class 📞 Call 716-353-3676 for details If you want a true production-class excavator for sitework, utilities, clearing, rock, and heavy trenching, the XCMG XE210U is the “do-everything” machine in the lineup. It’s built around simple, proven components with the muscle and hydraulic performance contractors expect in the 21-ton class. ✅ Powered by a Cummins Tier 4 Final diesel This is not a no-name engine — the XE210U runs a Cummins QSB6.7, a platform that’s widely supported and familiar to techs across North America. ⸻ 🔥 Engine (Cummins Tier 4 Final) • Engine model: Cummins QSB6.7 • Cylinders: 6 • Rated power @ 2100 rpm • SAE J1995: 173 hp @ 2100 rpm • SAE J1349: 153 hp • ISO 9249: 153 hp • Max torque @ 1500 rpm: 800 N·m • Idle (low–high): 700 – 1200 rpm • Displacement: 1.8 gal • Bore x stroke: 107 mm x 124 mm • Starter: 24V x 7.8 kW • Batteries / Alternator: 2 x 12V, 150 Ah / 24V, 70A • Air filtration: Donaldson PSD air filter + pre-filtered dust separator ⸻ ⚙️ Hydraulics (Pumps, Flow, Pressure) Main pumps • Type: 2 x variable displacement tandem axial piston pumps • Max flow @ 1750 rpm: 2 x 65.5 gpm Pilot pump • Type: Gear pump • Max flow @ 1750 rpm: 7.1 gpm Relief valve settings • Pressure up: 5,076 / 5,511 psi • Travel: 4,786 psi • Swing: 3,844 psi • Pilot: 580 psi ⸻ 🧠 Hydraulic Cylinders (Bore x Rod x Stroke) (As shown on your XE210U spec page) • Boom (Qty 2): 4.7” x 3.4” x 48.1” • Arm (Qty 1): 5.3” x 3.7” x 54.6” • Bucket (Qty 1): 4.5” x 3.4” x 41.7” ⸻ 🔄 Swing Performance • Maximum swing speed: 11.8 rpm • Maximum swing torque: 51,247 ft-lb ⸻ 🏁 Travel / Traction • Travel speed (low–high): 2.2 / 3.5 mph • Maximum traction: 18.8 ton • Maximum gradeability: 35° / 70% ⸻ 🧱 Undercarriage • Upper rollers (per side): 2 • Lower rollers (per side): 9 • Links & shoes (per side): 49 • Link pitch: 190 • Overall track length: 14’7” ⸻ 💪 Operating Weight / Ground Pressure (Triple Grouser) (Varies by shoe width) • 27” shoes: 50,827 lb | 522 ground pressure • 24” shoes: 50,486 lb | 560 ground pressure • (narrow shoe option shown): 50,045 lb | 653 ground pressure ⸻ 🧊 Fluid Capacities • Fuel tank: 105.7 gal • Cooling system (radiator): 6.0 gal • Urea (DEF) tank: 11.1 gal • Hydraulic oil tank: 58 gal • Engine oil: 6.3 gal • Swing drive: 1.8 gal • Travel device: 2 x 1.9 gal ⸻ 🧰 Component Weights (Key assemblies) • Upper structure (without front): 31,636 lb • Lower structure assembly: 18,838 lb • Front assembly: 7,716 lb • Counterweight: 9,309 lb 📞 Call 716-353-3676 for details |
