Click image to enlarge
DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE155U |
| Stock # | 4420020007948 |
| Id | 8535139 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/17/2026 11:59:14 AM -05:00 |
Description

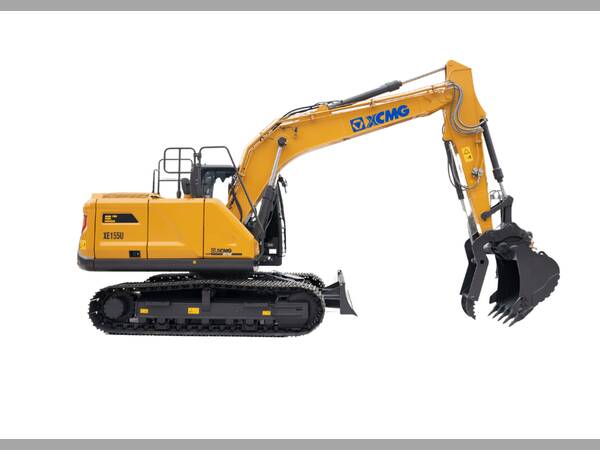

| 🚧 XCMG XE155U Hydraulic Excavator — Cummins Powered Production Machine 📞 Call 716-353-3676 for more information If you’re shopping the 15–16 ton class, the XCMG XE155U is built to be a true production excavator—strong hydraulics, serious digging numbers, and a footprint that still works great on utilities, sitework, clearing, and general construction. ✅ Powered by a Cummins Tier 4 Final diesel This isn’t an off-brand engine. The XE155U runs a Cummins B4.5—a name contractors trust for parts support, serviceability, and long-term uptime. ⸻ 🔥 Engine (Cummins Tier 4 Final) • Engine model: Cummins B4.5 • Cylinders: 4 • Rated power: 121 hp @ 2200 rpm (SAE J1995) • Max torque: 369 lb-ft @ 1500 rpm • Idle (low–high): 950–1100 rpm • Bore x stroke: 4” x 5” • Starter: 24V x 6.4 hp • Batteries / Alternator: 2 x 12V, 95 Ah / 24V, 70A • Air filtration: Donaldson PSD air filter + pre-filtered dust separator • Emissions package per brochure: EGR + SCR + DPF (T4F compliant) ⸻ 💪 Operating Weight / Ground Pressure (Triple Grouser) • 24” shoes: 35,031 lb | 5.9 psi • 20” shoes: 34,833 lb | 7.1 psi • 28” shoes: 35,230 lb | 5.1 psi • 31” shoes: 35,428 lb | 4.5 psi ⸻ ⚙️ Hydraulics (Pumps, Flow, Pressure) Main pumps • Type: 2 x variable displacement tandem axial piston pumps • Max flow @ 1800 rpm: 2 x 31 gpm Pilot pump • Type: Gear pump • Max flow @ 1800 rpm: 4.8 gpm Relief valve settings • Pressure up: 4,978 / 5,405 psi • Travel: 4,978 psi • Swing: 3,627 psi • Pilot: 589 psi ⸻ 🧠 Hydraulic Cylinders (Bore x Rod x Stroke) • Boom (Qty 2): 4.1” x 2.8” x 37” • Arm (Qty 1): 4.5” x 3.1” x 44.1” • Bucket (Qty 1): 3.9” x 2.8” x 33.5” ⸻ 🔄 Swing Performance • Max swing speed: 11.5 rpm • Max swing torque: 28,027 ft-lb ⸻ 🧊 Fluid Capacities • Fuel tank: 66 gal • Cooling system (radiator): 5.5 gal • Urea (DEF) tank: 6.6 gal • Hydraulic oil tank: 25.1 gal • Engine oil: 2.9 gal • Swing drive: 0.5 gal • Travel device: 2 x 0.6 gal ⸻ 🏁 Travel / Traction • Travel speed (low–high): 1.0–3.9 mph • Maximum traction: 25,628 lbf • Maximum gradeability: 35° / 70% ⸻ 🧱 Undercarriage • Upper rollers (per side): 1 • Lower rollers (per side): 7 • Links & shoes (per side): 45 • Overall track length: 12’ ⸻ 📏 Dimensions (2 Front-End Configs) Common • Boom length: 15’1” • Bucket capacity: 0.85 yd³ • Tail swing radius: 7’6” • Shipping height (cab): 10’3” • Shipping width: 8’8” • Counterweight clearance: 3’7” • Height over cab: 9’6” • House width: 8’5” • Cab height above house: 3’0” • Cab width: 3’7” • Tumbler distance: 9’7” • Track length: 12’ • Track height: 3’3” Option A — Arm 8’3” • Shipping height (boom): 9’7” • Shipping length: 25’6” • Undercarriage width: 8’6” • Shoe width (std): 24” • Ground clearance: 1’9” Option B — Arm 9’11” • Shipping height (boom): 9’8” • Shipping length: 25’7” • Undercarriage width: 8’8” • Shoe width (std): 28” • Ground clearance: 1’8” ⸻ 🕳️ Working Range (2 Arm Options) Arm 8’3” • Max digging reach: 27’2” • Max reach (ground): 26’9” • Max digging depth: 18’2” • Max loading height: 20’4” • Min loading height: 6’10” • Max digging height: 28’4” • Max bucket pin height: 24’5” • Max vertical wall depth: 15’ • Max radius vertical: 18’4” • Max depth cut (8’ level bottom): 17’4” • Min radius (3 line): 7’2” • Min swing radius: 8’1” • Real swing radius: 7’6” • Max blade height: 1’5” • Max blade depth: 2’1” • Blade height: 2’3” Arm 9’11” • Max digging reach: 28’9” • Max reach (ground): 28’4” • Max digging depth: 19’9” • Max loading height: 21’7” • Min loading height: 6’10” • Max digging height: 29’4” • Max bucket pin height: 25’7” • Max vertical wall depth: 14’10” • Max radius vertical: 20’9” • Max depth cut (8’ level bottom): 19’2” • Min radius (3 line): 7’1” • Min swing radius: 8’2” • Real swing radius: 7’6” • Max blade height: 1’5” • Max blade depth: 2’1” • Blade height: 2’3” ⸻ ⛏️ Digging Forces (ISO) Arm 8’3” • Bucket (Normal |
