Click image to enlarge
DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE135U |
| Stock # | 4420020007947 |
| Id | 8535137 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/17/2026 11:47:22 AM -05:00 |
Description

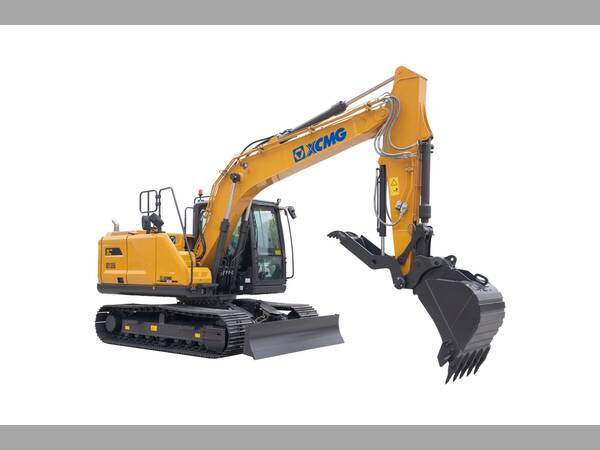

| 🚧 XCMG XE135UCR Hydraulic Excavator — Cummins Powered 📞 Call 716-353-3676 for more information Need a 13–14 ton class excavator that’s built for production but still comfortable on tighter jobsites? The XCMG XE135UCR delivers big-machine digging performance in a more compact footprint — and the best part is what’s under the hood: ✅ Cummins Tier 4 Final Diesel Power This machine is equipped with a Cummins F3.8 engine — a name contractors trust for parts support, reliability, and long-term uptime. ⸻ 🔥 Engine (Cummins Tier 4 Final) • Engine: Cummins F3.8 • Cylinders: 4 • Rated Power: 124.7 hp @ 2200 rpm (SAE J1995) • Max Torque: 369 lb-ft @ 1500 rpm • Idle (low–high): 950–1100 rpm • Displacement: 232 in³ • Bore x Stroke: 4” x 5” • Starter: 24V x 6.4 hp • Batteries / Alternator: 2 x 12V, 95 Ah / 24V, 70A • Air filtration: Donaldson PSD air filter + pre-filtered dust separator • Emissions system described: EGR + SCR + DPF (T4F compliant) ⸻ 💪 Operating Weight / Ground Pressure (Triple Grouser) • 24” shoes: 33,086 lb | 6.2 psi • 28” shoes: 33,510 lb | 5.4 psi • 31” shoes: 33,961 lb | 4.8 psi ⸻ ⚙️ Hydraulics (Pumps, Flow, Pressure) Main Pumps • Type: 2 x variable displacement tandem axial piston pumps • Max Flow @ 1800 rpm: 2 x 30 gpm Pilot Pump • Type: Gear pump • Max Flow @ 1800 rpm: 4.8 gpm Relief Valve Settings • Pressure up: 4,978 / 5,405 psi • Travel: 4,978 psi • Swing: 3,627 psi • Pilot: 589 psi ⸻ 🧠 Hydraulic Cylinder Sizes (Bore x Rod x Stroke) • Boom (Qty 2): 4.1” x 2.8” x 37” • Arm (Qty 1): 4.7” x 3.2” x 44.1” • Bucket (Qty 1): 3.9” x 2.8” x 33.5” ⸻ 🔄 Swing Performance • Max swing speed: 11.6 rpm • Max swing torque: 28,027 ft-lb ⸻ 🧊 Fluid Capacities • Fuel tank: 66 gal • Cooling system (radiator): 5.5 gal • Urea (DEF) tank: 6.6 gal • Hydraulic oil tank: 25.1 gal • Engine oil: 2.9 gal • Swing drive: 0.5 gal • Travel device: 2 x 0.6 gal ⸻ 🏁 Travel / Traction • Travel speed (low–high): 1.68–3.04 mph • Maximum traction: 27,202 lbf • Maximum gradeability: 35° / 70% ⸻ 🧱 Undercarriage • Upper rollers (per side): 1 • Lower rollers (per side): 7 • Links & shoes (per side): 45 • Overall track length: 12’ ⸻ 📏 Dimensions (Boom 15’1” / Arm 8’3” / Bucket 0.85 yd³) • Boom length: 15’1” • Arm length: 8’3” • Bucket capacity: 0.85 yd³ • Tail swing radius (brochure): 7’9” (UCR builds may differ—confirm by serial/build) • Shipping height (boom): 9’7” • Shipping height (cab): 9’11” • Shipping length: 25’6” • Shipping width: 8’6” • Counterweight clearance: 3’7” • Height over cab: 9’5” • House width: 8’2” • Cab height above house: 3’0” • Cab width: 3’7” • Tumbler distance: 9’7” • Track length: 11’1” • Undercarriage width: 8’6” • Shoe width (std): 24” • Track height: 3’2” • Ground clearance: 1’9” ⸻ 🕳️ Working Range • Max digging reach: 27’3” • Max digging reach (ground): 26’9” • Max digging depth: 18’2” • Max loading/unloading height: 20’3” • Min loading height: 6’10” • Max digging height: 28’4” • Max bucket pin height: 24’5” • Max vertical wall depth: 15’ • Max radius vertical: 18’4” • Max digging depth (8’ level): 17’4” • Min radius: 7’2” • L. Min swing radius: 8’1” • Real swing radius: 7’6” • Max blade height: 1’5” • Max blade depth: 2’1” • Blade height: 2’3” ⸻ ⛏️ Digging Forces (ISO) • Bucket (Normal/Press. Up): 24,065 lbf • Arm (Normal/Press. Up): 17,985 lbf ⸻ 🧰 Component Weights • Upper structure (without front attachment): 11,806 lb • Lower structure assembly: 10,571 lb • Front assembly: 5,732 lb • Counterweight: 4,910 lb • Boom: ~15,172 lb • Arm: ~8,771 lb ⸻ 🔇 Noise Ratings • LpA (ISO 6396): 76 dB(A) • LwA (ISO 6395): 102 dB(A) 📞 Call 716-353-3676 for more information |
